5" 10" 20" 30" Various Size Provided OEM Service Available Cartridge Filter

FOB Reference Price:Get Latest Price
$1.65 - $2.75 / Piece | 10 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China
Brand Name:
Huamo
Model Number:
Cartridge Filter
Product Name:
Cartridge Filter
Model PPF:
Nominal/Absolute
Micron Rating:
010,022,045,....30...
End Adaptor Configuration:
DOE/222/226
Seal:
EPDM, Buna, Silicone, Viton
Length:
5"/10"/20"/30"/40"
Usage:
Pure Water Process
Color:
White
Sample:
Available
OEM/DOM:
Available
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Cartridge Filter
Packaging & Delivery
Packaging Details
Cartridge Filter packed by standard exporting master carton.
Port
Shanghai/Ningbo/Shenzhen
Lead Time :
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 5 To be negotiated




  5" 10" 20" 30" Various Size Provided OEM Service Avaliable Cartridge Filter

  PP Pleated Filter Cartridge cater to high efficiency filtration requirement. They are constructed

  of high purity polypropylene materials which increasing dirty holding capacity. The materials

  comply with FDA related requirement. The high surface area enable high flow rates and long

  service life. The seirs of cartridge with multiple layered microporous ensure stable performance

  and broad chemical compatibility. The micron rating can be nominal and absolute.



 Specification







Material of Construction

Filter Media

Polypropylene

Support Layers

Polypropylene

Micron Rating

0.1,0.2,0.45,0.65,1,2,3,5,10,30,50,70,100μm

Inner Core

Polypropylene

Outer cage, End Cap

Polypropylene

Seal Method

Thermal Bonded, No Adhesives

O-ring/Gaskets

EPDM, Silicone, Buna, Viton





Cartridge Dimensions

Outer Diameter

69mm (2.75")

Inner Diameter

28mm (1.10")

Length(Based on DOE END Cap)

5", 10", 20", 30", 40"

Filtration Area (m2)

0.65m2 per 10"











Operating Conditions

Normal Operating Temp.

Up to 65℃ (140℉ )

Max. Operating Temp.

80℃(176℉) at P<1.0 bar (14.5 psi)

Forward Flow Direction

5.1 bar (75psi) at 25℃ (77℉)

Reverse Flow Direction

2.1 bar (30psi) at 25℃ (77℉)

PH Value Compatibility

1-14

Sterilization Temp. Time

Steam Sterilization for 30minutes at 121+_2℃, 100 cycles, Autoclave 30minutes (opional)



Cartridage Safety

Endotoxin

<0.25 EU/ml

Extractables

0.03g/10"

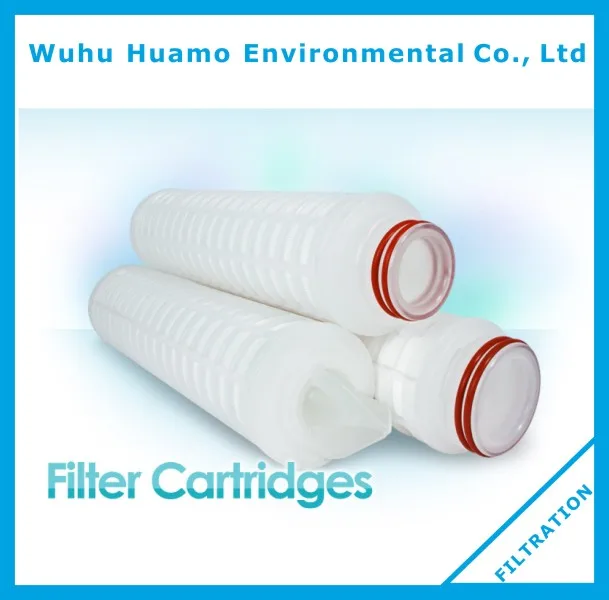

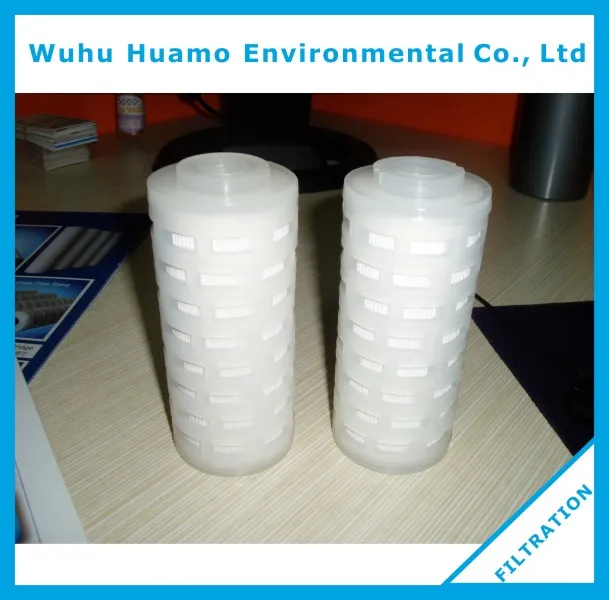

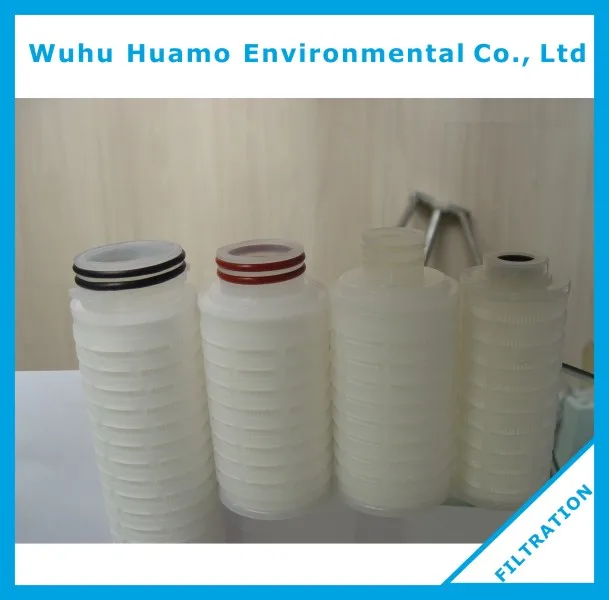

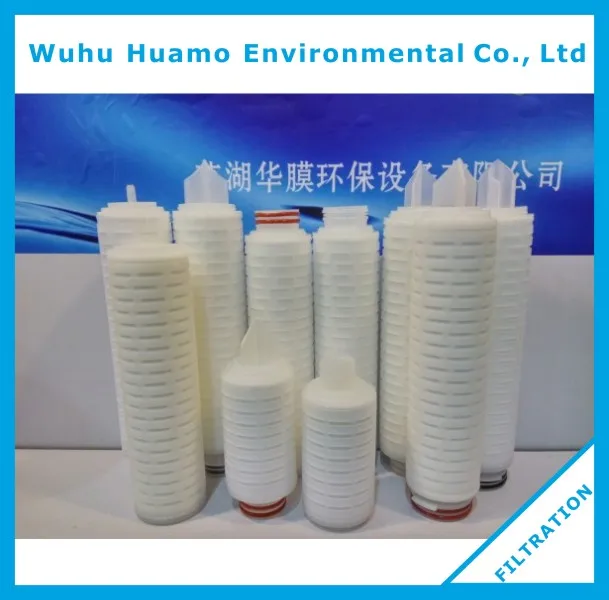

 Products Image

filter cartridge 28.jpgfilter cartridge 16filter cartridge 17filter cartridge 22



  Applications

 1.Pre-filtration or RO system, DI water

 2. Solvents, selected acids & lyes, chemical industry

 3. Semiconductor, Eletronic industry ultrapure water system

 4. Food and Beverage, Drinking water treatment
